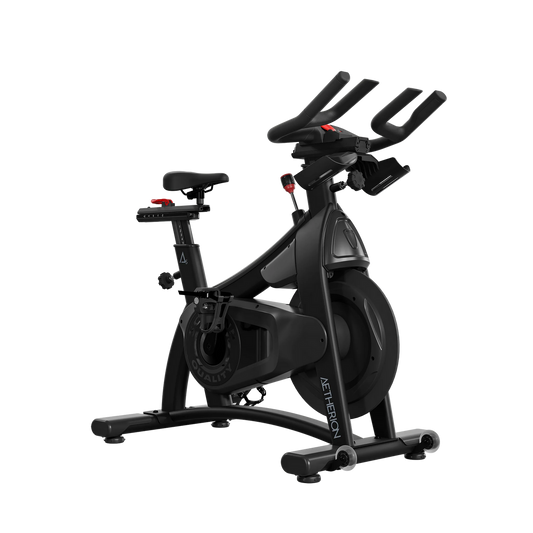

Aetherion is built for studios that ride to the rhythm of the road, focusing on feel, flow, and community connection. Its steel frame, magnetic resistance, and multi-position handlebars deliver a natural, responsive ride that works for both HIIT intervals and endurance formats. With Smooth or Road drivetrain options, facilities can match the experience to their coaching style. Designed for reliability and low maintenance, Aetherion is the premier choice for unplugged, instructor-led classes— delivering the consistency that keeps classes full and members coming back.

Console Option:

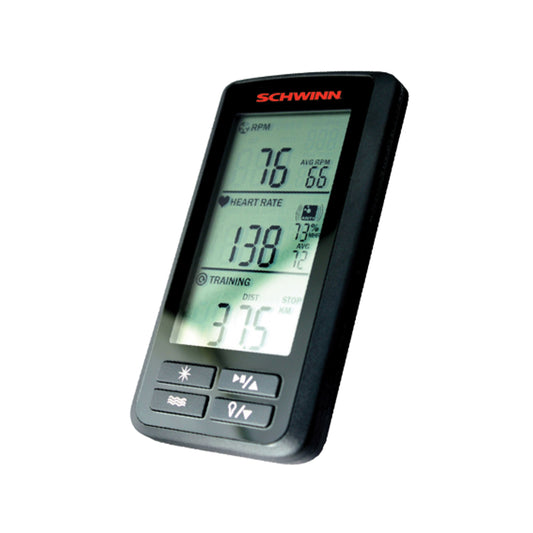

Cadence Pro Console:

Keep the focus on the ride with simple, distraction-free performance tracking. Cadence Pro delivers core metrics like time, distance, calories, and RPM in a clean, easy-to-read display—perfect for rhythm-driven classes and instructors focused on fundamentals.

Zone Console:

Coach smarter. Train deeper. Keep riders coming back.

The Zone Console unlocks the full potential of group cycling by turning live data into clear, coachable moments. With real-time, color-coded Zone Training, instructors can coach by heart rate, power (FTP), or cadence (RPM), adapting every class to the room in front of them. Riders see exactly where they are, what to push for, and how today’s effort compares to yesterday’s best.

Compatible with the Schwinn Aetherion+ Bike, this console is built for studios that value motivation and measurable progress, Zone blends live feedback, personal benchmarks, and light gamification to keep energy high and results visible. The outcome is more engaged riders, more confident instructors, and programming that delivers every session.

Zone Console Features:

• Multi-Metric Zone Training: Coach by Rhythm, %FTP, %MaxHR, or a simplified mode to match any class style or experience level.
• Unmatched Connectivity: ANT+ FE-C, FIT, PWR, HR, BLE, plus Samsung and Apple tap-to-pair. The only group cycling console in the industry that pairs directly with Apple Watch.
• Comprehensive Performance Metrics: Displays Power (Watts), Cadence (RPM), optional Gears, Calories (kCal/kJ), Distance (MI/km), and Duration.
• Personalized Biometric Inputs: Supports FTP and % of Max Heart Rate to create individualized training zones inside a group setting.
• Stage Timer with Progress Memory: Includes a “Previous” column so riders can chase past efforts and set clear goals in real time.
• Optional Power Trophies: Encourages 1-minute, 5-minute, and 20-minute personal bests throughout the ride.
• Color LCD Display: Bright, intuitive visuals make zones and effort levels easy to read at a glance.
• Generator Powered: No cords, no batteries, and no interruptions to class flow.
• 25 Resistance Levels: Fine control for endurance rides, climbs, and high-intensity intervals.

Feature Highlight:

• Smooth or Road Drive Options: Match your studio’s style with a quiet, fluid ride or outdoor-inspired feel.
• Multi-Position Handlebars: Support comfortable riding positions for rhythm rides, climbs, and sprints.
• Magnetic Resistance: Delivers smooth, consistent adjustments for endurance or HIIT sessions.
• Durable Steel Frame: Engineered for stability and safety, even in high-volume studios.
• Patented Morse Taper Pedal Spindle: Engineered for durability even during the most intense classes
• Double Link Pedals Standard: SPD clip-in or athletic shoe compatible; Triple Link option expands to Delta/Keo cleats.

Features

• Steel Frame
• Magnetic Resistance
• New multi-hand position bars
• Standard Double-Link pedals with Morse Taper spindle (Triple Link pedal optional)
• 2 Drive Train Options
• Smooth: Poly V Belt
• Road: Toothed Belt

Aetherion

• No Electronics
• Optional Cadence Pro

Models

• 9-7600 Aetherion S
• 9-7610 Aetherion R

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credtis for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

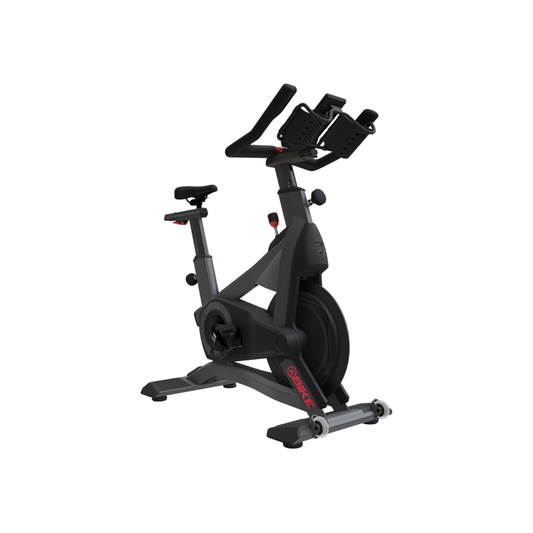

FEATURES

• Authentic, Toothed Carbon Belt on Xa 7470

• Integrated phone/tablet holder
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 cm to 203 cm)
• Max User Weight: 300 lb (136 kg)

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

TECHNOLOGY

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credits for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

FEATURES

• Authentic, Toothed Carbon Belt on Za 7520
• 4iiii crank arm powermeter delivers accurate strain gauge power feedback to help riders train harder and smarter
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 CM to 203 CM)
• Max User Weight: 300 LBS (136 KG)
• Zone Console Included

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

In order to reduce the global demand for batteries, we have replaced our consoles requiring periodic changing of batteries with group cycles that generate power from pedaling. When not disposed of properly, batteries release harmful metals such as mercury, lead and cadmium into the environment. Look for ways to reduce your environmental impact with generator-powered electronics!

TECHNOLOGY

Zone Console: Paired with 4iiii’s industry leading 3-dimensional strain gauge powermeter, the Zone Console displays the most accurate power, direct from the member. It is the most reliable and authentic indicator for performance in cycling. The Zone Console allows members to use FTP input, making zones personal.

Instructors will love uniting a class with color, allowing members at both ends of the fitness spectrum to ride side by side with the same intensity and sense of accomplishment. Schwinn’s broad-based approach reduces the traditional number of Power and Heart Rate training zones to 4 to align with ratings of perceived exertion, creating more accessible and attainable programming for instructors and members alike. Zone-colored LED lights next to the flywheel display each member’s intensity, encouraging the class to Ride As One.

OpenHub Console Connectivity: Our goal is to provide the best technology solutions possible for our customers and their members. Partnering with 4iiii, we created the Zone Console to be an open platform with connectivity options like Bluetooth, NFC and ANT+. This feature allows owners and members to select and work with the Fitness Technology and Apps that meet their needs.

All Schwinn A.C.™ indoor bikes come standard with Double Link pedals with SPD and toe-clip combinations to accommodate both cycling cleats and regular athletic shoes. The bikes are also compatible with the Schwinn Triple Link™ pedal upgrade. Triple Link Pedals accommodate Look Delta and SPD style cleats to simulate an outdoor riding experience. They also easily convert to accept traditional athletic shoes with the snap-in locking toe clips. Belt drive using Carbon Blue™ technology Recommended User Height: 4’11” to 6’8″.

The AC Performance bike is Schwinn Triple Link™ pedal compatible. Triple Link Pedals accommodate Look, Delta and SPD style cleats to simulate an outdoor riding experience. They easily convert to accept traditional athletic shoes with the snap-in locking toe clips.

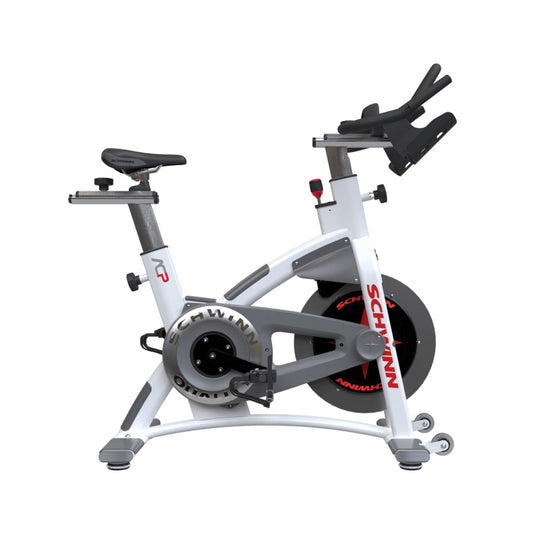

INNOVATION, UNCHAINED.

Introducing Carbon Blue™ technology – a belt drive system combining unmatched durability with the authentic outdoor biking feel you expect from Schwinn. For nearly 20 years, Schwinn carbon blue belt drive bikes have led the indoor cycling industry. Even as other companies began to use belt drives, we stayed true to our technology for one simple reason: belt drives felt nothing like riding an outdoor bike. Today, all of that is changing. There is a revolutionary new belt drive taking the outdoor bike community by storm, and we’ve adapted it and brought it indoors on the A.C. Performance. This next generation system delivers guaranteed durability and virtually zero maintenance, without sacrificing the Schwinn authentic cycling feel that riders know and love.

CARBON BLUE™

Several years ago, a company named Gates introduced a concept never before seen on outdoor bikes – a belt drive that performed like a chain. Their innovative system – called Carbon Drive™– features a carbon fiber reinforced belt with teeth for maximum durability and true bike performance. Over time, this has transitioned from a novelty system to a mainstream solution used on hundreds of outdoor bike models today. Over the past year, we have worked with Gates to adapt this revolutionary technology to our A.C. Performance bike. The result is a new belt-based drive system that combines the maintenance-free durability and performance of a belt with the authentic-ride feel of a chain. We call it Carbon Blue ™ – those who ride it call it “incredible.”

BENEFITS OF CARBON BLUE™

LOW MAINTENANCE

• Belt never requires lubrication
• Tension never needs to be adjusted

REAL BIKE FEEL

• High-inertia drive train provides momentum and feel of chain drive
• Toothed belt provides rider feedback and road feel

FEATURES

• High Performance handlebars support all rider needs, from comfort to high-performance
• Virtual Contact™ Magnetic resistance brake allows for smooth, consistent control
• Schwinn Fit system enables a wide range of seat and handlebar adjustments to provide a safe and comfortable setup for a wide range of riders

5-YEAR WARRANTY

• Carbon fiber reinforcement makes this belt incredibly durable
• The longest warranty of any belt or chain on the market

TECHNICAL SPECS

• Product Dimensions: 54" L x 21" W x 51" H (137cm x 53cm x 130cm)
• Product Weight: 102 lbs (46 kg)
• Max User Weight: 350 lbs (159 kg)
• Frame Finish: Aluminum
• Frame Color: Pearl White
• Seat Slider, Handlebars and Hardware Materials: Aluminum
• Drive System: Belt drive using Carbon Blue™ technology
• User Compatible Size Range: Typically 4'11" to 6'8" (150 to 203 cm) tall
• MPower™ Echelon Console Compatible: Yes
• Q Factor: 170mm
• This unit requires Morse Taper Pedals, please call for details

Commercial Warranty

Frame: 10 years Mechanical: 2 years Wear items: 6 months Labor: 1 year

Click here to Download Product Sheet
Click here to Download Owner's Manual

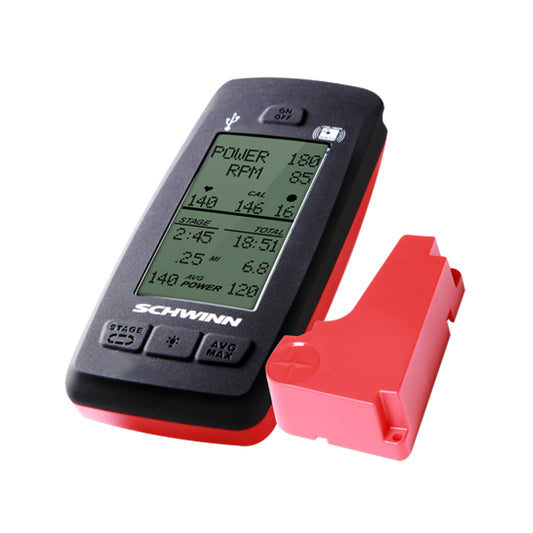

Technical Specs

• Console dimensions: 7.1"L x 3"W x 1.9"D (18cm x 7.7cm x 4.8cm)
• Display dimensions: 1.7"L x 3.7"W (4.5cm x 9.4cm)
• Display: LCD with button-activated backlight
• Power: 2 C-batteries
• Measurements displayed: POWER (Watts), RPM (Cadence), KCal (Calories), Heart Rate (with Strap) STAGE Time, Distance, and Power, and TOTAL Time, Distance and Power
• Gear: 1-36
• Compatibility: Compatible with the Schwinn® A.C.™ Series bikes

U.S. Commercial Warranty

• Warranty: 2 years

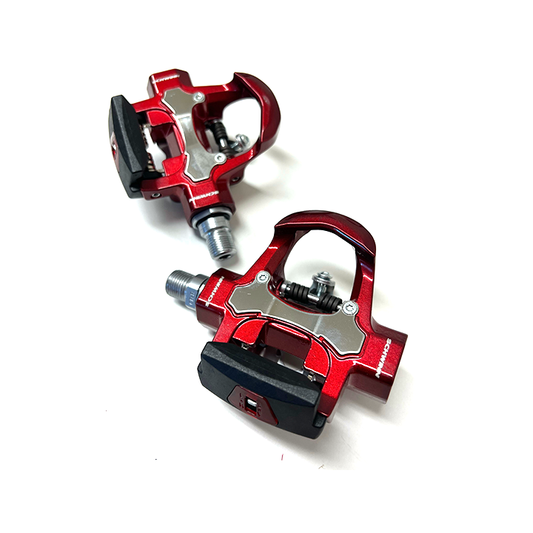

Schwinn Triple Link Pedals is an Innovative Pedal System Providing Choice of Traditional Athletic Shoes, SPD or Look-Style Shoe Cleats.

Features

• 9/16" pedal set fits all Schwinn indoor cycles
• Also fits all Star Trac indoor cycles
• Fits any bike that requires a 9/16" pedal
• Two-sided pedal
• One side allows the use of either the Look style shoe cleat or snap the Toe Clip to this side for use with traditional athleticshoes
• Not compatible with the Look Keo cleats
• Pedals do not work on bikes that have the morse taper pedals
• One side allows the use of the SPD style shoe cleat
• High performance ChroMo rod and industrial grade bearings provide years of trouble-free use
• Has locking features to prevent accidental release

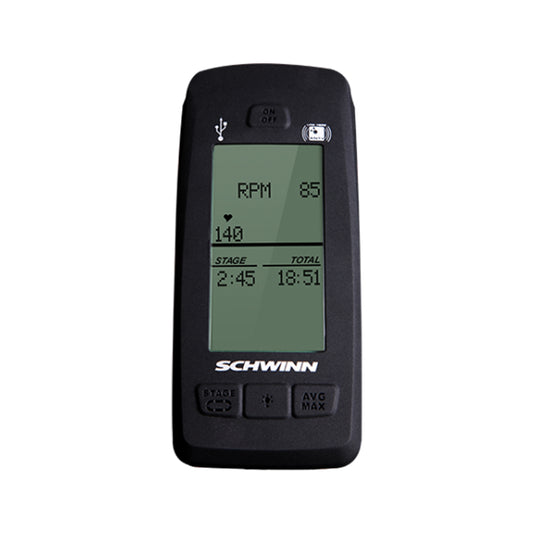

The new Echelon2 is an evolution of the Echelon. We’ve kept the basic look of the console the same but changed the outer case to black to distinguish it from the Echelon.

Features

• Compatible with all Schwinn® A.C.™ Series Bikes
• Large, easy-to-read display with all measures on one screen
• Multiple options for tracking rider workouts, including wireless ANT+ and USB
• Dedicated ON/OFF button for preserving battery life

Technical Specs

• Console dimensions: 7.1"L x 3"W x 1.9"D (18cm x 7.7cm x 4.8cm)
• Display dimensions: 1.7"L x 3.7"W (4.5cm x 9.4cm)
• Display: LCD with button-activated backlight
• Power: 2 C-batteries
• Measurements displayed: RPM (Cadence), HEART RATE, STAGE Time and TOTAL Time
• Compatibility: Compatible with the Schwinn® A.C.™ Series bikes

U.S. Commercial Warranty

• Warranty: 2 years
• NOTE: Warranty terms are for U.S. only and vary by region. Contact the distributor in your country and region.

Meet your next workhorse. The AC Sport features a steel frame, Carbon Blue toothed belt for an authentic feel, plus adjustable saddle and handlebar fore and aft sliders. It’s a product of input from the world’s best cycling instructors and fitness buyers and is ideal for high use studios because it is built to last.

CARBON BLUE DRIVE SYSTEM

The CARBON BLUE BELT replicates the feel of a traditional chain drive giving the rider an authentic outdoor experience. The belt never requires lubrication, tension never needs to
be adjusted and the carbon fiber reinforcement is incredibly durable. Our 10 Year Warranty is the longest of any belt or chain on the market.

INNOVATIVE AND POWERFUL

Schwinn’s Echelon2 consoles utilize direct or estimated power and can be connected to a group display or leaderboard system via ANT+.

FEATURES

• PRODUCT WEIGHT: 115 lb (52 kg)

• SHIPPING WEIGHT: 129 lb (58.5 kg)

• PRODUCT FOOTPRINT (LXWXH): 43.5 in x 20 in x 50 in (110 cm x 51 cm x 127 cm)

• MAX PRODUCT LENGTH: 50 in (127 cm)

• SHIPPING DIMENSIONS (LXWXH): 45 in x 11 in x 37 in (112 cm x 28 cm x 94 cm)

• FRAME MATERIAL: Steel

• FRAME FINISH: E-coated and Powder Coated

• FRAME COLOR: Quantum Silver

• DRIVE SYSTEM/TRAIN: Carbon BlueTM Belt Drive

• RESISTANCE SYSTEM: 6 Magnet Non- Contact Magnetic Resistance

• Q-FACTOR: 168 mm

• HANDLE BAR: Sport

• SADDLE: AC Saddle

• FORE/AFT ADJUSTMENT SYSTEM: Pop-Pin

• HEIGHT ADJUSTMENT SYSTEM: Pop-Pin

• FLYWHEEL: Aluminum, thin profile

• PEDALS: Morse Taper Double Link - SPD and athletic shoe cage

• USER HEIGHT RANGE: 4'11" to 6'8" (150 cm to 203 cm)

• MAX USER WEIGHT: 350 lb (159 kg)

COMPATIBLE CONSOLES

• ECHELON2G: NA

• ECHELON2: 740-8940

• ECHELON2 FOR 4IIII®: 718-5767 with 718-5765

• ECHELON2 WITH POWER UPGRADE: 740-8942

• CADENCE PRO: 740-8803

COMPATIBLE ACCESSORIES

• PEDALS: 718-5869, 740-8689, 740-8825

• BIKE NUMBERING TAGS: NA

• DUMB BELL HOLDERS: NA

• POWERMETER CRANKS: 718-5765

INNOVATION, UNCHAINED.

Introducing Carbon Blue™ technology – a belt drive system combining unmatched durability with the authentic outdoor biking feel you expect from Schwinn. For nearly 20 years, Schwinn carbon blue belt drive bikes have led the indoor cycling industry. Even as other companies began to use belt drives, we stayed true to our technology for one simple reason: belt drives felt nothing like riding an outdoor bike. Today, all of that is changing. There is a revolutionary new belt drive taking the outdoor bike community by storm, and we’ve adapted it and brought it indoors on the A.C. Performance Plus. This next generation system delivers guaranteed durability and virtually zero maintenance, without sacrificing the Schwinn authentic cycling feel that riders know and love.

CARBON BLUE™

Several years ago, a company named Gates introduced a concept never before seen on outdoor bikes – a belt drive that performed like a chain. Their innovative system – called Carbon Drive™– features a carbon fiber reinforced belt with teeth for maximum durability and true bike performance. Over time, this has transitioned from a novelty system to a mainstream solution used on hundreds of outdoor bike models today. Over the past year, we have worked with Gates to adapt this revolutionary technology to our A.C. Performance Plus bike. The result is a new belt-based drive system that combines the maintenance-free durability and performance of a belt with the authentic-ride feel of a chain. We call it Carbon Blue ™ – those who ride it call it “incredible.”

BENEFITS OF CARBON BLUE™

LOW MAINTENANCE

• Belt never requires lubrication
• Tension never needs to be adjusted

REAL BIKE FEEL

• High-inertia drive train provides momentum and feel of chain drive
• Toothed belt provides rider feedback and road feel

TECHNICAL SPECS

• Product Dimensions: 50" L x 21" W x 51" H (127cm x 53cm x 130cm)
• Product Weight: 112 lbs (51 kg)
• Max User Weight: 350 lbs (159 kg)
• Frame Finish: Aluminum
• Frame Color: Pearl White
• Seat Slider, Handlebars and Hardware Materials: Aluminum
• Drive System: Belt drive using Carbon Blue™ technology
• User Compatible Size Range: Typically 4'11" to 6'8" (150 to 203 cm) tall
• MPower™ Echelon Console Compatible: Yes
• Q Factor: 170mm

TECHNICAL SPECS

• Length: 44.5″ (113 cm)
• Width: 21″ (53 cm)
• Height: 46″ (117 cm)
• User Weight Capacity: 350 lbs (159 kg)
• Product Weight: 120 lbs (54 kg)

FEATURES

• Customizable options available with frame paint, personally branded decals, and accessories
• Heavy Perimeter-Weighted Flywheel and quiet Poly-V belt Drive Train provide an Smooth Cycling experience
• Direct Pressure Brake Resistance
• 4iiii® crank arm powermeter delivers accurate strain gauge power feedback to help riders train harder and smarter
• On-board generator powers Echelon2G Console without batteries
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Multi-position handlebars accommodate a wide range of choreography
• Find your perfect riding position with easy micro seat and handlebar adjustments
• Frame Finish – Powder Coated Aluminum
• Seat slider and handlebar materials – Aluminum
• Max User Weight 350 lb (159 kg)
• User Height Range 4’11” to 6’8” (150 cm to 203 cm)

Features

• Aluminum frame provides rust-free performance and is significantly lighter than steel.
• 6 magnet brake system provides smooth, consistent, and maintenance-free resistance that won’t wear or change over time.
• Schwinn Fit System with micro-adjustments enables versatile seat and handlebar adjustments for refined positioning.
• Light weight handlebars with new adjustment system provides easy set-up and increased adjustment range.
• Aluminum seat slider, handlebars and hardware materials for rust-free performance.
• Dual-density saddle for comfort and performance.
• Enhanced handlebar design improves grip comfort and support for all rider needs, from comfort to high-performance.
• Dual handlebar mounted water bottle holders.
• Double Link pedals with SPD and toe-clip combinations accommodate both cycling cleats and regular athletic shoes.
• Wide step through frame design for easy entry and exit from the bike.
• Chain drive system uses forged steel crank and ISIS oversized bottom bracket.
• Simple flywheel and chain guard removal to simplify any service needs.
• Upgraded chain tensioning hardware with easy access.
• Durable non-slip stretch pads located on several parts of the frame keep your bike looking great.
• Heavy duty leveling feet keep the bike level during all types of workouts.
• Compatible with the optional MPower Console (sold separately).
• Front transport wheels make moving the unit easy.

Optional MPower™ Console V2: Would you run on a treadmill that did not provide you with measurements such as time, speed, distance and calories burned? Once you experience the Schwinn MPower Console V2, you will wonder how you ever rode group cycle bikes without these measurements, and you will never want to ride without them again. The MPower Console V2 provides RPM, stage and total time measurements, and in addition if rider is wearing a heart rate strap, HR and calories burned are also displayed. The MPower Console V2 becomes even more powerful when used in combination with the Schwinn Power Upgrade, which allows it to provide Watts, speed, distance and calories based on Watts.

Specifications

• User compatible size range: Typically 4’11” to 6’8” (150 to 203 cm) tall
• Built dimensions: 43 L x 20 W x 48 H in (109 L x 51 W x 122 H cm)
• Built weight (NW): 106 lbs (48.1 kg)
• Carton dimensions: 44.3 L x 11.4 W x 38 H in (112.5 L x 29 W x 96.5 H cm)
• Carton weight (GW): 118 lbs (53.5 kg)
• Maximum user weight: 300 lbs (136 kg)
• Q Factor: 170mm
• SKU: 100178
• UPC: 855512003182

TECHNICAL SPECS

• Length: 43.5 in (111 cm)
• Width: 20″ (51 cm)
• Height: 48″ (112 cm)
• User Weight Capacity: 350 lbs (159 kg)
• Product Weight: 114 lbs (52 kg)
• Flywheel Weight: 41 lbs (19 kg)
• Ship Weight: 130 lbs (59 kg)

FEATURES

• Classic handlebar design with integrated water bottle holder and smart phone tablet mount
• Perimeter-weighted flywheel with dual-pad brake technology
• Chain drive using forged steel crank and ISIS oversized bottom bracket
• Heavy Perimeter-Weighted Flywheel
• Direct Pressure Brake Resistance
• Narrow Q-Factor
• Optional Cadence Pro Console
• Trapezoidal seat adjustment
• Frame Finish – E-Coated & Powder Coated Steel

Features:

• Heavy Perimeter-Weighted Flywheel and quiet Poly-V belt Drive Train provide an Smooth Cycling experience
• Direct Pressure Brake Resistance
• Optional 4iiii^® crank arm power meter delivers accurate strain gauge power feedback to help riders train harder and smarter
• Frame Finish – Powder Coated Aluminum
• Seat slider and handlebar materials – Aluminum
• Iconic aluminum frame design offers lower overall weight and superior rust resistance
• Handlebars and seat settings provide vertical and fore/aft user adjustment for optimal bike fit
• Dual oversized easy access water bottle holders integrated into the handlebar design
• Patent-pending Morse Taper bottom bracket and pedal system for increased strength and reliability
• Superior biomechanics with a bottom bracket Q factor of 162 mm
• Durable 6-Groove Poly-V belt for an exceptionally smooth ride
• Custom dual-sided SPD^® pedals featuring a larger pedal body and both SPD and toe cage design
• Non-rusting urethane/over-molded leveling feet for easy leveling adjustment
• Accommodates riders 4′ 10″ (147 cm) to 6′ 10″ (208cm), and up to 350 lbs (159 kg)
• Compatible with Star Trac Computer
• User Weight 350 lb(159 kg)
• Height Range 4’11” to 6’8” (150 cm to 203 cm)

Specifications:

• Length: 55″ (140 cm)
• Width: 21″ (53 cm)
• Height: 46″ (117 cm)
• User Weight Capacity: 350 lbs (159 kg)
• Product Weight: 120 lbs (54 kg)
• Flywheel Weight: 41 lbs (19 kg)
• Ship Weight: 120 lbs (55 kg)

All Schwinn A.C.™ indoor bikes come standard with Double Link pedals with SPD and toe-clip combinations to accommodate both cycling cleats and regular athletic shoes. The bikes are also compatible with the Schwinn Triple Link™ pedal upgrade. Triple Link Pedals accommodate Look Delta and SPD style cleats to simulate an outdoor riding experience. They also easily convert to accept traditional athletic shoes with the snap-in locking toe clips. Belt drive using Carbon Blue™ technology Recommended User Height: 4’11” to 6’8″.

The AC Performance bike is Schwinn Triple Link™ pedal compatible. Triple Link Pedals accommodate Look, Delta and SPD style cleats to simulate an outdoor riding experience. They easily convert to accept traditional athletic shoes with the snap-in locking toe clips.

INNOVATION, UNCHAINED.

Introducing Carbon Blue™ technology – a belt drive system combining unmatched durability with the authentic outdoor biking feel you expect from Schwinn. For nearly 20 years, Schwinn carbon blue belt drive bikes have led the indoor cycling industry. Even as other companies began to use belt drives, we stayed true to our technology for one simple reason: belt drives felt nothing like riding an outdoor bike. Today, all of that is changing. There is a revolutionary new belt drive taking the outdoor bike community by storm, and we’ve adapted it and brought it indoors on the A.C. Performance. This next generation system delivers guaranteed durability and virtually zero maintenance, without sacrificing the Schwinn authentic cycling feel that riders know and love.

CARBON BLUE™

Several years ago, a company named Gates introduced a concept never before seen on outdoor bikes – a belt drive that performed like a chain. Their innovative system – called Carbon Drive™– features a carbon fiber reinforced belt with teeth for maximum durability and true bike performance. Over time, this has transitioned from a novelty system to a mainstream solution used on hundreds of outdoor bike models today. Over the past year, we have worked with Gates to adapt this revolutionary technology to our A.C. Performance bike. The result is a new belt-based drive system that combines the maintenance-free durability and performance of a belt with the authentic-ride feel of a chain. We call it Carbon Blue ™ – those who ride it call it “incredible.”

BENEFITS OF CARBON BLUE™

• Belt never requires lubrication
• Tension never needs to be adjusted

• High-inertia drive train provides momentum and feel of chain drive
• Toothed belt provides rider feedback and road feel

• High Performance handlebars support all rider needs, from comfort to high-performance
• Virtual Contact™ Magnetic resistance brake allows for smooth, consistent control
• Schwinn Fit system enables a wide range of seat and handlebar adjustments to provide a safe and comfortable setup for a wide range of riders

• Carbon fiber reinforcement makes this belt incredibly durable
• The longest warranty of any belt or chain on the market

• Product Dimensions: 54" L x 21" W x 51" H (137cm x 53cm x 130cm)
• Product Weight: 102 lbs (46 kg)
• Max User Weight: 350 lbs (159 kg)
• Frame Finish: Aluminum
• Frame Color: Pearl White
• Seat Slider, Handlebars and Hardware Materials: Aluminum
• Drive System: Belt drive using Carbon Blue™ technology
• User Compatible Size Range: Typically 4'11" to 6'8" (150 to 203 cm) tall
• MPower™ Echelon Console Compatible: Yes
• Q Factor: 170mm
• This unit requires Morse Taper Pedals, please call for details

Frame: 10 years Mechanical: 2 years Wear items: 6 months Labor: 1 year

REAL POWER. REAL RESULTS.

Packed with all of the best-in-class features of Schwinn’s top tier indoor bikes, the new AC Power bikes take your Authentic Cycling riding experience to a whole new level with the amazingly accurate 4iiii® crank arm powermeter, the new Echelon2G console, and a built in generator, preventing the continuous need to replace batteries.

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credtis for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

FEATURES

• Authentic, Toothed Carbon Belt on Xa 7470

• Integrated phone/tablet holder
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 cm to 203 cm)
• Max User Weight: 300 lb (136 kg)

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

TECHNOLOGY

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credtis for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

FEATURES

• Smooth Poly V Drive Train on Xs 7480
• Integrated phone/tablet holder
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 cm to 203 cm)
• Max User Weight: 300 lb (136 kg)

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

TECHNOLOGY

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credits for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

FEATURES

• Smooth Poly V Drive Train on Zs 7510
• 4iiii crank arm powermeter delivers accurate strain gauge power feedback to help riders train harder and smarter
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 CM to 203 CM)
• Max User Weight: 300 LBS (136 KG)
• Zone Console Included

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

In order to reduce the global demand for batteries, we have replaced our consoles requiring periodic changing of batteries with group cycles that generate power from pedaling. When not disposed of properly, batteries release harmful metals such as mercury, lead and cadmium into the environment. Look for ways to reduce your environmental impact with generator-powered electronics!

TECHNOLOGY

Zone Console: Paired with 4iiii’s industry leading 3-dimensional strain gauge powermeter, the Zone Console displays the most accurate power, direct from the member. It is the most reliable and authentic indicator for performance in cycling. The Zone Console allows members to use FTP input, making zones personal.

Instructors will love uniting a class with color, allowing members at both ends of the fitness spectrum to ride side by side with the same intensity and sense of accomplishment. Schwinn’s broad-based approach reduces the traditional number of Power and Heart Rate training zones to 4 to align with ratings of perceived exertion, creating more accessible and attainable programming for instructors and members alike. Zone-colored LED lights next to the flywheel display each member’s intensity, encouraging the class to Ride As One.

OpenHub Console Connectivity: Our goal is to provide the best technology solutions possible for our customers and their members. Partnering with 4iiii, we created the Zone Console to be an open platform with connectivity options like Bluetooth, NFC and ANT+. This feature allows owners and members to select and work with the Fitness Technology and Apps that meet their needs.

We lead by example by creating authentic, broad-based content and utilizing a coaching approach that allows instructors to connect with members from all fitness levels. By taking one of our courses, instructors will learn the importance of being a trusted communicator, how to set expectations, engage, motivate and retain members. Join the Certified ranks, a community of 100’s of thousands of instructors, and earn credits for continued education from ACE, AFAA, NASM and CIMPSA.

• PRODUCT FOOTPRINT (LxW): 42.5 IN x 20.6 IN (1076.5 MM x 525 MM)
• MAX PRODUCT LENGTH: 56 IN (1420 MM)
• MAX USER WEIGHT: 300 LBS (136 KG)
• PRODUCT WEIGHT: 130 LBS (59 KG)
• SHIPPING WEIGHT: 152 LBS (69 KG)

FEATURES

• Smooth Poly V Drive Train on Zs 7510
• 4iiii crank arm powermeter delivers accurate strain gauge power feedback to help riders train harder and smarter
• 6 Magnet Non-Contact Magnetic Resistance System
• Morse Taper pedals and bottom bracket for increased durability and reliability
• Frame Finish – Powder Coated Aluminum
• User Height Range: 4’11 to 6’8 (150 CM to 203 CM)
• Max User Weight: 300 LBS (136 KG)
• Zone Console Included

Sustainability: Creating positive impact through thoughtful action. In order to reduce our packaging’s negative influence on marine life and waterways, we have replaced expanded polystyrene (EPS) with 100% recycled corrugate, which can be recycled again to also use less raw material. Look for ways to reduce your disposal fees and environmental impact with recycling!

In order to reduce the global demand for batteries, we have replaced our consoles requiring periodic changing of batteries with group cycles that generate power from pedaling. When not disposed of properly, batteries release harmful metals such as mercury, lead and cadmium into the environment. Look for ways to reduce your environmental impact with generator-powered electronics!

TECHNOLOGY

Zone Console: Paired with 4iiii’s industry leading 3-dimensional strain gauge powermeter, the Zone Console displays the most accurate power, direct from the member. It is the most reliable and authentic indicator for performance in cycling. The Zone Console allows members to use FTP input, making zones personal.

Instructors will love uniting a class with color, allowing members at both ends of the fitness spectrum to ride side by side with the same intensity and sense of accomplishment. Schwinn’s broad-based approach reduces the traditional number of Power and Heart Rate training zones to 4 to align with ratings of perceived exertion, creating more accessible and attainable programming for instructors and members alike. Zone-colored LED lights next to the flywheel display each member’s intensity, encouraging the class to Ride As One.

OpenHub Console Connectivity: Our goal is to provide the best technology solutions possible for our customers and their members. Partnering with 4iiii, we created the Zone Console to be an open platform with connectivity options like Bluetooth, NFC and ANT+. This feature allows owners and members to select and work with the Fitness Technology and Apps that meet their needs.
