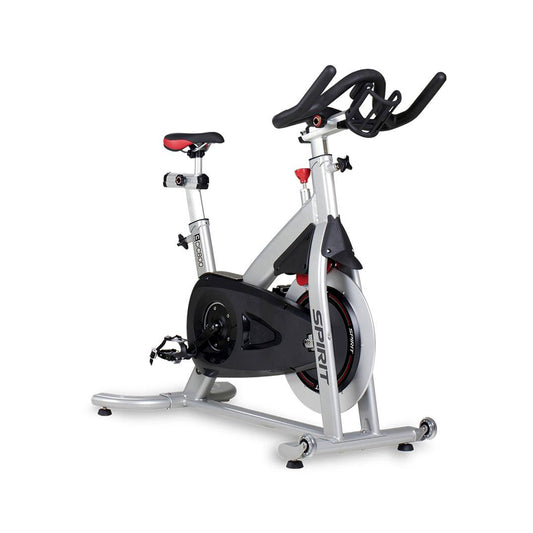

The premium ISIS bottom bracket cartridge ensures greater surface area contact, a sturdier connection, and less maintenance than a traditional square joint. This same bottom bracket cartridge is used on high end bicycles. There are many key components responsible for optimum performance of an indoor cycle. The Hutchinson drive belt, ISIS bottom bracket cartridge, pulley size and material, gear ratio and three piece crank have been carefully chosen on the CIC800 and incorporated into the overall design to assure optimal performance and durability. These components, along with an ergonomically correct frame design and full fore/aft/up/down adjustability, combine to make the perfect indoor cycle for your facility.

FEATURES

• Foot Pedals: As with any product, customization is of extreme importance. We addressed this issue with a dual function pedal. On one side is a standard flat surface with a toe cage that appeals to the average exerciser. On the other side is a premium SPD clip that will be utilized by avid cyclists.
• Flywheel: Perimeter weighted, high-inertia 37 lbs. flywheel
• ISIS Spline: The splined receiver for the pedal cranks enhances stability and requires less maintenance than a square receiver.
• Bearings: Needle bearings that encompass the flywheel and pedal/crank joint promote quiet, fluid rotation.
• Paint Durability: Durable Powder-Coat Paint
• Frame Durability: A 126 lb. frame consisting of 2.5mm thick oval tubing and round bars that enhance stability and promote longevity
• Contact Points: The co-molded rotary resistance/brake knob and “L” shaped joint adjustment handles promote comfort
• Efficiency: Rear joint cover offers a convenient, effective calf stretch.
• Stability: Oversized floor casters provide a stable base of support for simulated climbs out of the saddle and heavier riders.
• Comfort: Micro fore/aft adjustments on seat and handlebars
• Clarity: Aluminum seat and handlebar post with stamped height settings for quick reference.

SPECIFICATIONS

• Resistance: Magnetic, Rotary Knob; Micro Adjustments
• Drive Train: Industrial Grade Hutchinson Poly-V Belt and ISIS Oversized Bottom Bracket
• Flywheel: Perimeter Weighted 37lbs Flywheel; High Inertia System
• Seat: Racing Saddle
• Frame: High Strength Steel with Durable Powder Coat Paint
• Handlebar: PVC coated, Multi-Grip Design, Built-In Water Bottle Holder
• Handlebar/Seat Posts: Aluminum with Stamped Numerical Height Indicators
• Adjustments: Up/Down - Reliable Pop-Pin Adjustments; Fore/Aft - Knob Tightening Micro Adjustments.
• User Size Range: Typically 4’11” to 6’5” tall
• Dimensions: 42” X 21” X 41”
• Product Weight: 126 lbs.
• Maximum User Weight: 350 lbs.
• Foot Pedals: Dual Sided with SPD & Toe Cage

COMMERCIAL WARRANTY: (Dues Paying Facility)

• Frame: 10 Years
• Parts: 3 Years
• Labor: 1 Year
• Wear Items (Grips & Toe Cage Straps): 1 Year

COMMERCIAL WARRANTY: (Non-Dues Paying Facility)

• Frame: 15 Years
• Parts: 3 Years
• Labor: 1 Year
• Wear Items (Grips & Toe Cage Straps): 1 Year

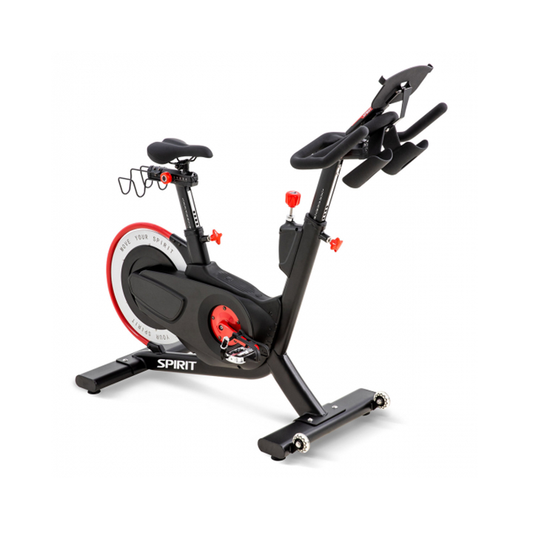

Features:

• Electronically controlled magnetic resistance system with multiple adjustment touch points.
• Belt drive system provides the feel of a road bike.
• Solid steel construction and triple powder coated for durability.
• Smart, Bluetooth® and ANT+™ enabled electronics.
• Proprietary handlebar design for comfort and resistance buttons at your fingertips regardless of ride position.

Specifications

• BELT DRIVE SYSTEM: Conti Syncroforce® and FleXonic Poly V® belts delivery a unique feel of a road bike.
• SELF POWERED NO BATTERIES REQUIRED: The Johnny G Spirit bike creates its own power with a generator built into the bike. A unique circuit design stores enough power to retain the workout information for at least 10 minutes and maintains connection to all user devices and leader boards when the user stops pedaling. Unlike many other bikes, absolutely NO batteries are used in this bike.
• TOUCH ELECTRONIC SHIFTING: Touch sensitive electronic shifting.
• COCKPIT STYLE CONSOLE: The concept for the console has always been to give the rider the feeling of being in a cockpit looking at a Heads-Up Display.
• Q FACTOR: 168mm / 6.6 inch
• BUILT IN PROGRAMS: Warm up mode, Manual, HR Zone program, Power Zone program and LAP program.
• CLAMSHELL MONOCOQUE FRAME: Powder coated and electroplated.
• CONNECTIVITY: Smart Bluetooth and ANT+ enable electonics.

Console Features

• DISPLAY: 23 characters with 6 data metrics at a glance, multi-color heart rate and power zone indicator LEDs
• PROGRAMS: Heart rate zone, power zone, lap, Functional Threshold Power (FTP) test
• WORKOUT SUMMARY: Time, distance, watt avg, watt peak, speed avg, speed peak, heart rate avg, heart rate peak, RPM avg, RPM peak, lap, % time in heart rate zone, % time in power zone
• FUNCTION KEYS: Forward control pad with resistance and play button to start workout from warm-up, includes additional resistance buttons at handlebar ends
• POWER REQUIREMENTS: generator drive system with power save function to store workout data for 10 minutes after pedalling has stopped
• COMMUNICATION MODULE: Bluetooth® FTMS channels and ANT+™, compatible with Myzone™, Garmin® and leaderboards

Product Features

• RESISTANCE CONTROL: Electronically controlled magnetic resistance with multi-touch point adjustments
• RESISTANCE LEVELS: 20
• DRIVETRAIN: Conti Synchroforce® HTD and Hutchinson® FleXonic® Poly V® belts
• SAFETY STOP: Braking lever to stop flywheel
• SEAT & HANDLEBAR ADJUSTMENTS: Up/down – locking pop-pin, fore/aft – lever lock
• FLYWHEEL: 21 kg / 46 lbs
• CRANK ARMS: 170 mm / 6.7 in
• Q-FACTOR: 168 mm / 6.6 in
• PEDALS: Dual sided with SPD and straps
• FRAME CONSTRUCTION: Solid steel with 3 layers of protection (plated, powder-coated and clear coat)
• LEVELER FEET: Rubber to protect flooring
• DIMENSIONS: 1250 x 500 x 1100 mm / 49 x 20 x 43 in
• PRODUCT WEIGHT: 68 kg / 151 lbs
• MAX. USER WEIGHT: 159 kg / 350 lbs
• CERTIFICATES & PATENTS: CE(EN957), UL, CSA, and FCC. Patent pending.
